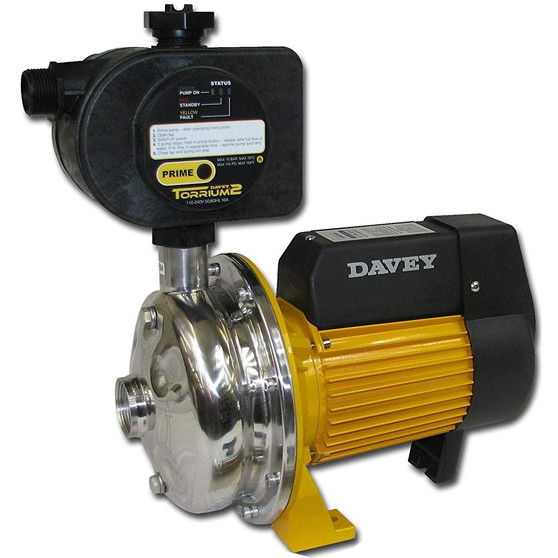

The Davey BT booster pressure system consists of a robust centrifugal pump fitted with the intelligent Davey Torrium2 water pressure controller to deliver boosted water pressure to your home or other application. Consumers can enjoy strong and seemingly constant water pressure due to Torrium2’s constant flow operation.
Features:
- Stainless steel pump volute offers better durability and corrosion resistance over plastic and cast iron alternatives
- Pump permits larger flow rates due to larger internal pathways
- No moving control parts inside the water pathways means better reliability and no blockages
- Integrated dry run protection, over-current & overheat protection, auto-restart
- Torrium2 controller offers advanced monitoring and controls, while offering flexibility in discharge - top, side or both
- Built-in check valve
- Includes stainless steel hose for easy system connection
- Very low noise levels of ~54dB
Technical Specifications:
- Voltage: 220-240V
- Main frequency: 60Hz
- Type of cable plug: 6ft power cord with standard NEMA 6-15P power plug
- Nominal Duty: Flow 50 gpm @ 30 psi
- Maximum boost: 50 psi
- Maximum flow rate: 45 GPM
- Maximum system pressure: 100 psi
- Minimum pressure setting: 15 psi
- Maximum pressure setting: 80 psi
- Cut-out (low-flow) rate: 0.26 GPM
- Maximum ambient temperature: 120°F
- Maximum liquid temperature: 158°F
- Maximum suction lift: 25ft
- IP rating: IP55
- Outlet size: 1" Male NPT
- Inlet size: 1-1/4" Female NPT
- Weight: 16.25 lbs
- Dimensions (L x W x H): 12.69" x 8.93" x 16.14"
Warranty:
3 years from the date of installation
